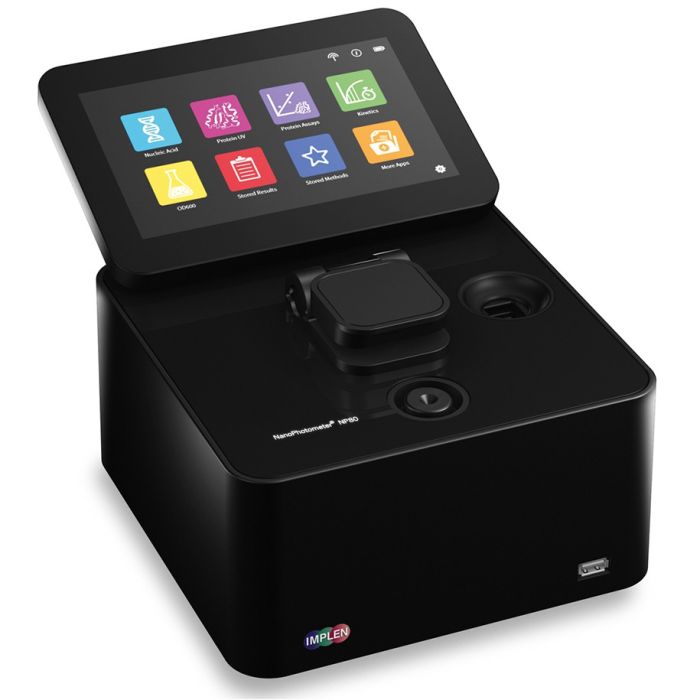

IMPLEN NANOPHOTOMETER NP80
Le NP 80 de chez Implen vous permettra la quantification d'ADN et de protéines. Son système optique est dédié pour les micro-volumes et ainsi vous utiliserez le minimum d'échantillon possible, à partir de 0.3µl
SKU
IMNP80
Le NP80 est un spectrophotomètre UV/VIS pour quantifier et évaluer la pureté de l'ADN, il permet aussi de quantifier les protéines. Il est possible de faire des mesures en longueur d'onde fixe, de faire des spectres, des cinétiques et des courbes de calibration.
NanoVolume Performance
| Detection Range dsDNA | 1 ng/µl to 16,500 ng/µl |
| Detection Range BSA | 0.03 mg/ml to 478 mg/ml |
| Minimum Sample Size | 0.3 µl |
| Photometric Range (10 mm equivalent) | 0.02 – 330 A |
| Path Length | 0.67 and 0.07 mm |
| Dilution Factor | 15 and 140 |
| Vortexer | 2,800 rpm; tube size up to 2.0 ml |
Cuvette Performance
| Detection Range dsDNA | 0.1 ng/µl to 130 ng/µl |
| Detection Range BSA | 0.003 mg/ml to 3.7 mg/ml |
| Photometric Range | 0 – 2.6 |
| Center Height (Z-Height) | 8.5 mm |
| Cell Types | outside dimension 12.5 x 12.5 mm |
| Heating | 37°C ± 0.5°C |
Optical Specifications
| Wavelength Scan Range | 200 – 900 nm |
| Measure Time For Full Scan Range | 3.5 seconds |
| Wavelength Reproducibility | ± 0.2 nm |
| Wavelength Accuracy | ± 0.75 nm |
| Bandwidth | 1.8 nm |
| Stray Light | < 0.5% at 220 nm using NaI |
| Absorbance Reproducibility | < 0.002 A (0.67 mm path) @ 280 nm |
| Absorbance Accuracy | ±0.002 A or ±1% of the reading, whichever is greater |
| Zero Stability | ±0.003 A/hour after 20 min warm up @ 280 nm |
| Noise | 0.002 A rms at 0 A @ 280 nm 0.002 A (pk to pk) at 0 A @ 280 nm |
| Optical Arrangement | 1 x 3648 CCD Array |
| Lamp | Xenon flash lamp |
| Lifetime | 109 flashes, up to 10 years |
Compatibility Requirements
| Control Options | Onboard with built-in touch screen, computer, smartphone and tablet |
| Software Compatibility | Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), OS X, iOS and Android OS |
| Min. Requirement Smart Phone/Tablet | 4 inch screen; Apple: iPad 2, iPhone5 and iOS 6 Android version 4.4, Quadcore 1.2 GHz with 1 GB RAM |
